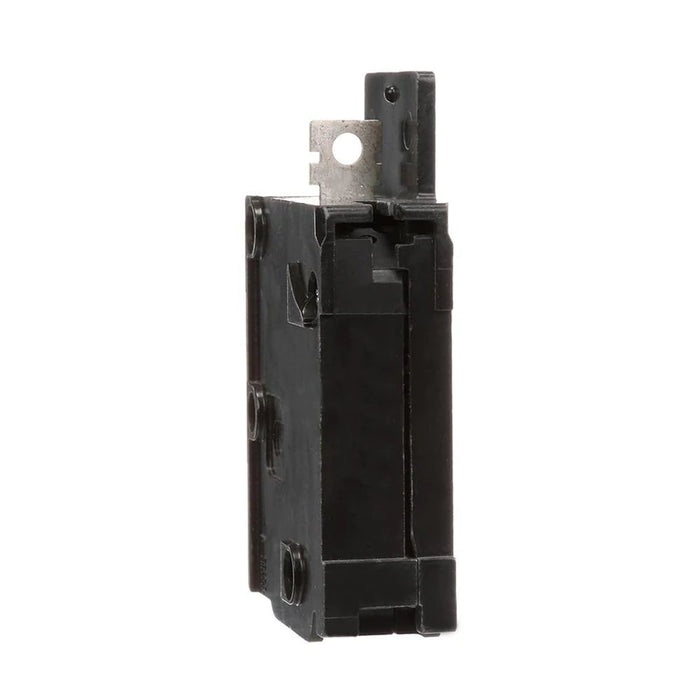

Siemens BQ1B030 30 Amp Single Pole BQ Bolt-On Circuit Breaker

Siemens BQ1B030 30 Amp Single Pole BQ Bolt-On Circuit Breaker

 Specifications:

• Model No. : BQ1B030
• Single Pole
• Single pole thermomagnetic circuit breaker. 30 A.  120V/240 V.
• Connection : Bolt-On
• One-piece moulded plastic case. Easy to install. Bolt-On.
• Reliable Protection
• Quick On/Off switch.
• Phase : 1
• Interrupting Rating 10000 Ampere
• Dimensions (H x W x L): 4" x 1" x 3"
• One Year Warranty
• CSA Approved & UL Listed

Molded case circuit LOW TAB bolt-on breakers for panelboard mounting with insta-wire in 3 types of tripping speed BL=10KA, BLH=22KA, HBL=65KA. Available in versions 1 pole 120vac, 2 poles common trip 120/240vac, 2 poles common trip 240vac and 3 poles common trip 240vac
